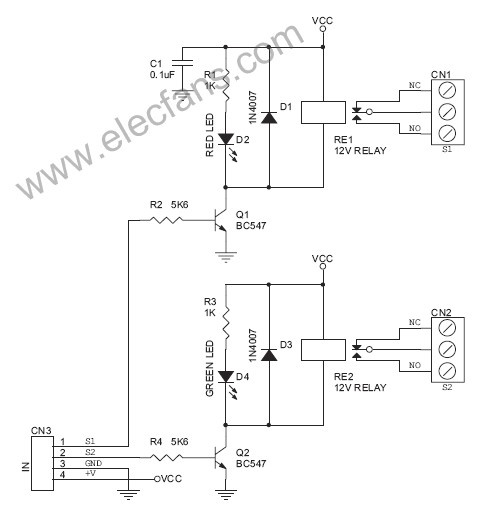

双继电器驱动板电路,Dual Relay Driver Board
Description
Dual Channel Relay Board is a simple and convenient way to interface 2 relays for switching application in your project.
Input – 12 VDC @ 84 mA
Output – two SPDT relay
Relay specification – 5 A @ 230 VAC
Trigger level – 2 ~ 5 VDC
Berg pins for connecting power and trigger voltage
LED on each channel indicates relay status
Power Battery Terminal (PBT) for easy relay output connection
Four mounting holes of 3.2 mm each

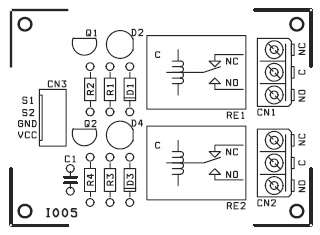

PCB dimensions 49 mm x 68 mm
